China Prefab Steel Structure House Solution
- Place of Origin: Shangdong, China (Mainland)
- Brand Name: QUALITY
- Model Number: Steel structure house
- Material: Steel
- Use: House, home, wallcamp
- Standard: ISO/CE/AS/US/CA
- Roofing: Customized
- Insulation: Fiberglass/ Rock wool / PU
- Features: Energy saving / Fast Assembly
- Using Life: 70 Years
- Design: Plan & 3D Model & Structral D

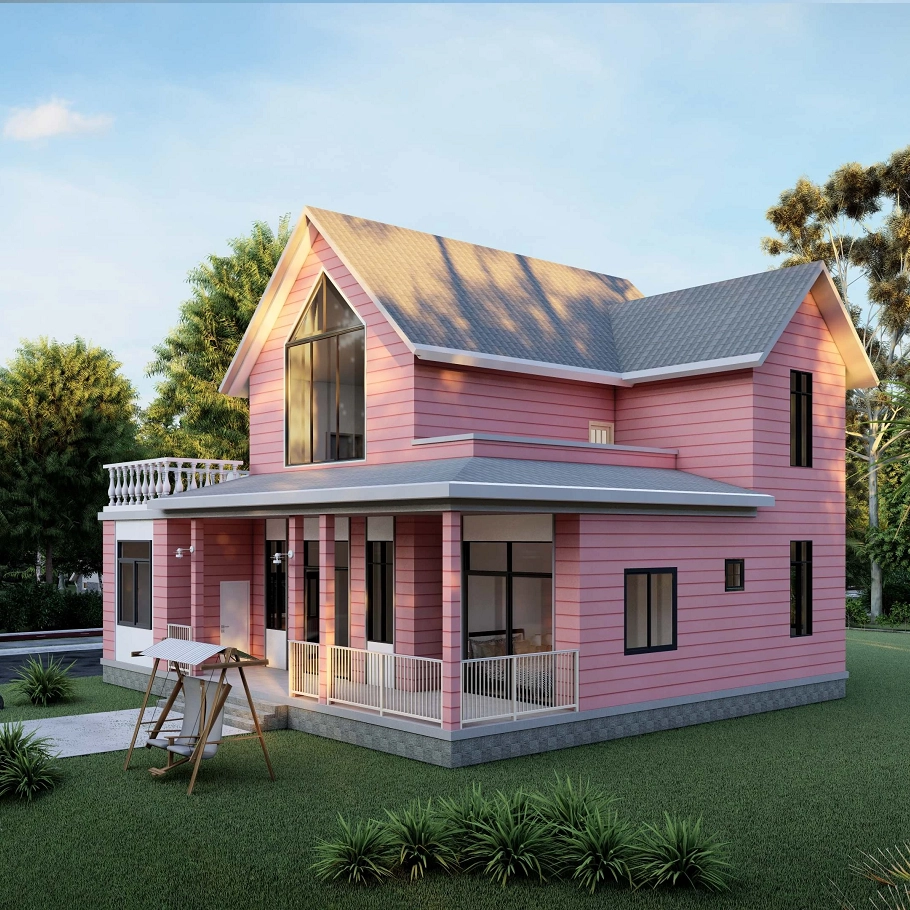

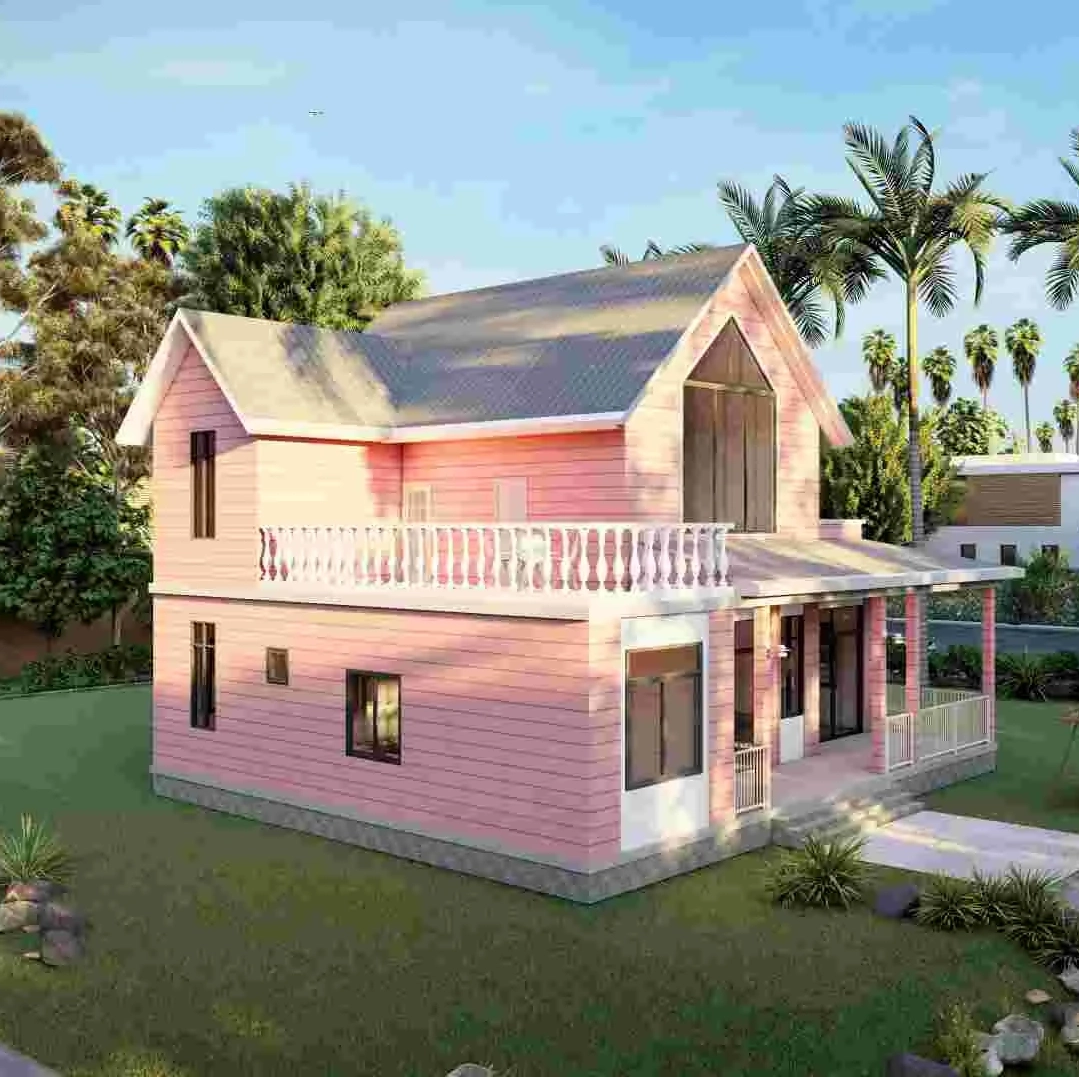

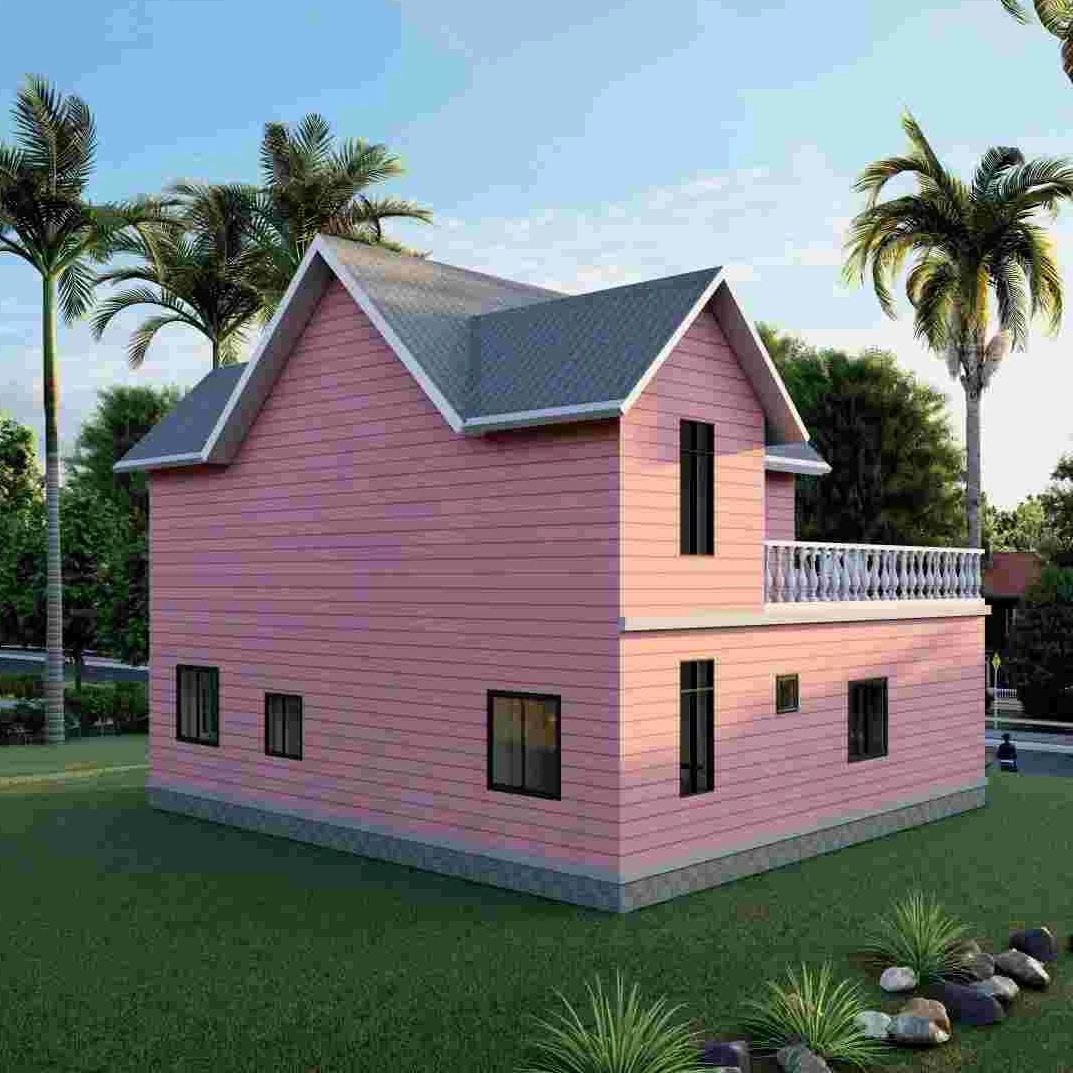

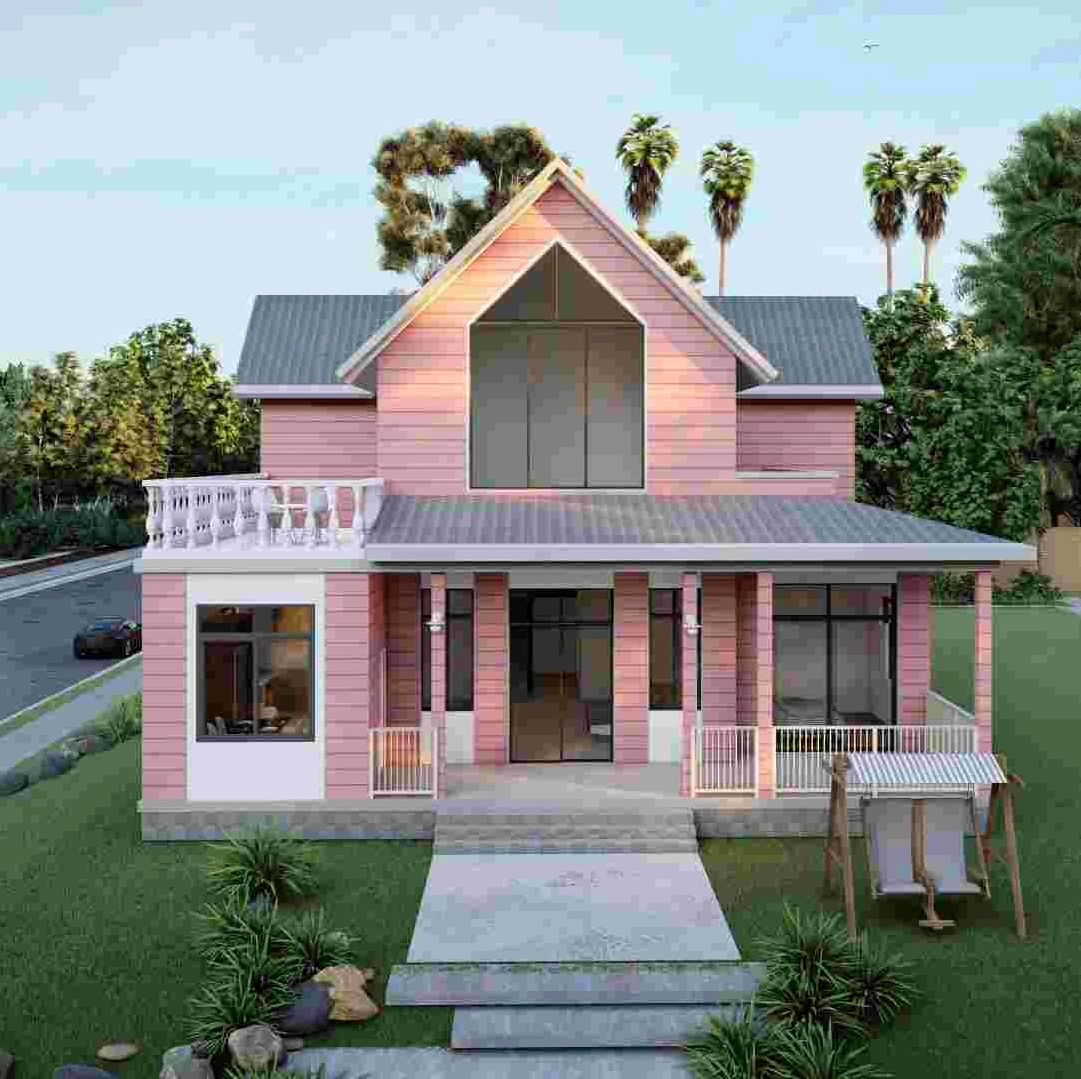

Popular Luxury China Steel Structure Houses Selling - QB08
Energy-saving prefab steel structure on sale with fast assembly and a 70-year lifespan, customizable to your design.
Product Description

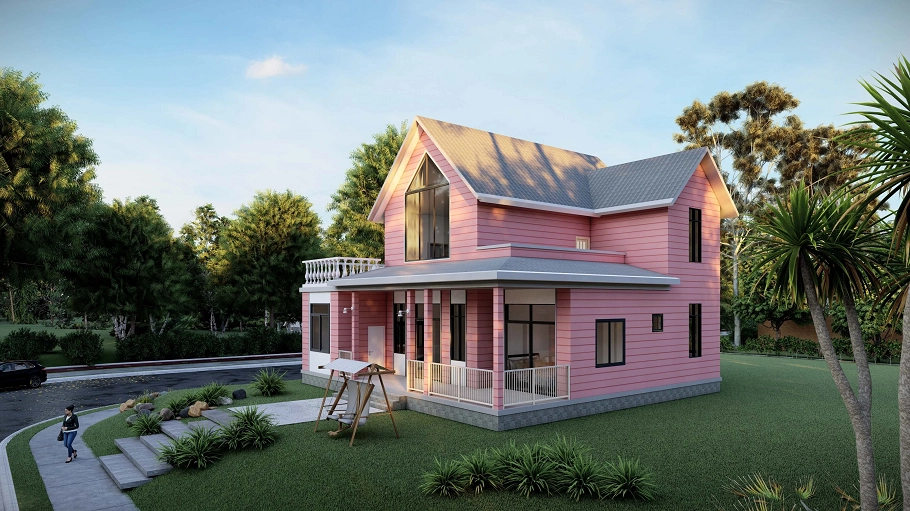

We offer a complete prefab steel buildings solution China based, including design, 3D modeling, and certified insulation options.
| No. | NAME | DESCRIPTION | UNIT | THEORY QTY | LOSS RATE | UNIT |
| 一 | LGS Structure | |||||
| 1 | steel structure | ㎡ | 265 | 1.00 | T | |
| 2 | fittings | set | 265 | 1.00 | ㎡ | |
| 二 | Wall System | |||||
| 1 | External wall OSB board | 1220*2440*9mm | ㎡ | 326.18 | 1.30 | pc |
| 2 | External wall unidirectional breath paper | ㎡ | 326.18 | 1.30 | m2 | |
| 3 | External wall wooden support | 30*40*3000mm | m | 978.54 | 1.30 | pc |
| 4 | External wall metal carved board | 381*3800*16mm +381*4500*16mm | ㎡ | 326.18 | 1.30 | ㎡ |
| 5 | Internal wall OSB board | 1220*2440*9mm | ㎡ | 549.7 | 1.30 | pc |
| 6 | Internal wall PVC board | 1200*2400*9mm | ㎡ | 549.7 | 1.20 | m2 |
| 7 | Wet district fiber cement board | 1220*2440*10mm | ㎡ | 39.04 | 1.30 | pc |
| 三 | Insulation System | |||||
| 1 | Glasswool Insulation | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 457.46 | 1.30 | m2 |
| 2 | Glasswool insulation(under roof) | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 222 | 1.30 | m2 |
| 3 | External wall XPS board | 1200*600*40mm | ㎡ | 326.18 | 1.20 | pc |
| 四 | Floor System | |||||
| 1 | Floor surface OSB | 1220*2440*18mm | ㎡ | 107.8 | 1.30 | m2 |
| 2 | Floor self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 107.8 | 1.20 | roll |
| 3 | Floor tile | 12mm | ㎡ | 107.8 | 1.10 | ㎡ |
| 五 | Roof System | |||||
| 1 | Roof OSB board | 1220*2440*12mm | ㎡ | 222 | 1.50 | pc |
| 2 | self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 222 | 1.40 | roll |
| 3 | Roof tile | asphalt tile | ㎡ | 222 | 1.50 | pack |
| 4 | Roof ridge tile | asphalt tile | m | 43.37 | 1.10 | pack |
| 5 | Roof eaves pvc molding | 6m/pc | m | 83.87 | 1.50 | pc |
| 6 | PVC closing strip | 4m/pc | m | 83.87 | 1.50 | pc |
| 7 | Metal carved board under roof eaves | 381*3800*16mm | ㎡ | 50.322 | 1.50 | pc |
| 六 | Ceiling | |||||
| 1 | pvc ceiling/pvc | 6000*200mm | ㎡ | 265 | 1.20 | ㎡ |
| 2 | pvc angle skirting | ㎡ | 265 | 1.05 | ㎡ | |
| 七 | Door & Window | |||||
| 1 | Alumunium double glaze window | ㎡ | 54.31 | 1.00 | ㎡ | |
| 2 | Steel and MDF door | ㎡ | 22.94 | 1.00 | ㎡ | |
| 八 | Water&Electric System | |||||
| 1 | Water Pipes | ㎡ | 265 | 1.00 | ㎡ | |
| 2 | Electric system | Include weak current,exclude socket/switch/light,etc | ㎡ | 265 | 1.00 | ㎡ |
| 九 | Accessories System | ㎡ | 265 | 1.00 | ㎡ | |
| 十 | Loading | ㎡ | 265 | 1.00 | ㎡ |
Packing&Shipping
Packing Details : 1, Delivery by 40'HQ shipping container. 2, 4 in 1 flat packing
Delivery Details : 3-20 days after order
Trust our prefab steel solution China for ISO/CE-certified, customizable, and durable structural systems with global standards.
Shandong Quality Integrated House Co.,Ltd.
Tel:0086-13153691144
Contact Person:Sales Department
PDF Show:PDF
- Other Products

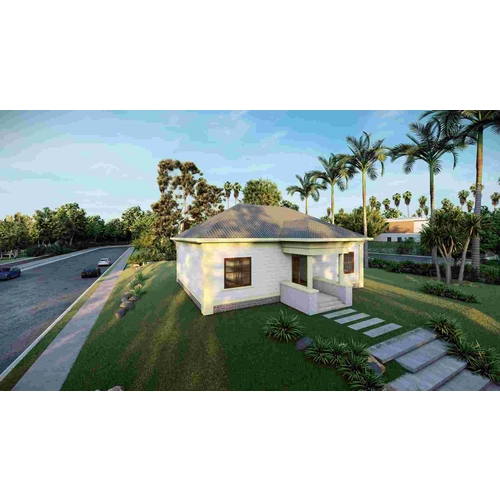

-Heya-Prefab-Luxury-Villa-Project-Steel-Light-In-Europe-Market-And-South-America.jpg.webp "China Prefab Luxury Villa Project China Steel House In Europe Market And South America-QB03 manufacturer")

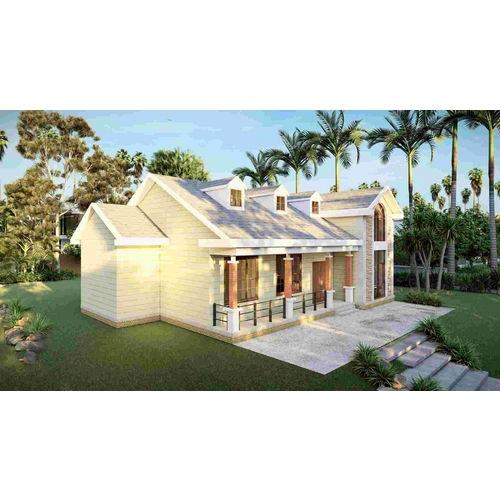

-2-Floor-Popular-Prefab-Luxury-Villa-Houses-Selling.jpg.webp "China 2 Floor Popular Prefab Luxury Villa Movable Home Selling-QB04 manufacturer")
