Luxury Villa - (Qb28) Beautiful High Quality Accommodation Plan Sales In Saudi Arabia
- Place of Origin: Shangdong, China (Mainland)
- Brand Name: HEYA
- Model Number: Prefab villa house
- Material: Steel
- Use: House, Villa, Residentail
- Standard: ISO/CE/AS/US/CA
- Roofing: Customized
- Insulation: Fiberglass/ Rock wool / PU
- Features: Energy saving / Fast Assembly
- Using Life: 70 Years

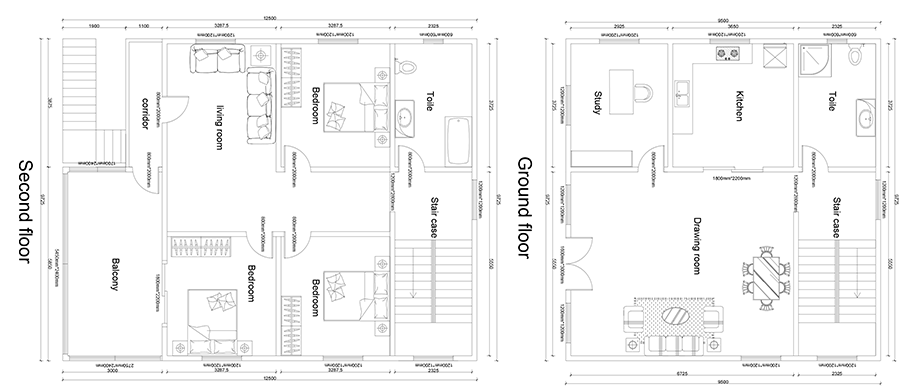

- Design: Plan & 3D Model & Structral D
| BREAK DOWN QUOTATION SHEET | ||||
| No. | NAME | DESCRIPTION | UNIT | THEORY QTY |
| LGS Structure | ||||
| 1 | steel structure | ㎡ | 243 | |
| 2 | fittings | set | 243 | |
| Wall System | ||||
| 1 | External wall OSB board | 1220*2440*9mm | ㎡ | 252.1 |
| 2 | External wall unidirectional breath paper | ㎡ | 308.7 | |
| 3 | External wall wooden support | 30*40*3000mm | m | 756.3 |
| 4 | External wall metal carved board | 381*3800*16mm +381*4500*16mm | ㎡ | 252.1 |
| 5 | Internal wall OSB board | 1220*2440*9mm | ㎡ | 402.6 |
| 6 | Internal wall gypsum board | 1200*2400*9mm | ㎡ | 402.6 |
| 7 | Wet district fiber cement board | 1220*2440*10mm | ㎡ | 116.85 |
| Insulation System | ||||
| 1 | Glasswool Insulation | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 385.775 |
| 2 | Glasswool insulation(under roof) | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 165 |
| 3 | External wall XPS board | 1200*600*40mm | ㎡ | 252.1 |
| Floor System | ||||
| 1 | Floor surface OSB | 1220*2440*18mm | ㎡ | 110 |
| 2 | Floor self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 110 |
| 3 | Floor concrete cushion | C25 concrete | ㎡ | 110 |
| Roof System | ||||
| 1 | Roof OSB board | 1220*2440*12mm | ㎡ | 165 |
| 2 | self-paste waterproof coil | T1.5mm，-15℃，20㎡/roll | ㎡ | 165 |
| 3 | Roof tile | asphalt tile | ㎡ | 165 |
| 4 | Roof ridge tile | asphalt tile | m | 27.9 |
| 5 | Roof eaves pvc molding | 6m/pc | m | 63.5 |
| 6 | PVC closing strip | 4m/pc | m | 63.5 |
| 7 | Metal carved board under roof eaves | 381*3800*16mm | ㎡ | 38.1 |
| Door & Window | ||||
| 1 | Alumunium window | ㎡ | 56.6 | |
| 2 | Interior door | ㎡ | 9.6 | |
| 3 | Accessories for door sill/windowsill | 1220*2440*10mm | m | 172 |
| Water&Electric System | ||||
| 1 | Water Pipes | ㎡ | 243 | |
| 2 | Electric system | Include weak current,exclude socket/switch/light,etc | ㎡ | 243 |
| Decoration Accessories System | ㎡ | 243 | ||
| Hardware Accessories System | ㎡ | 243 | ||
