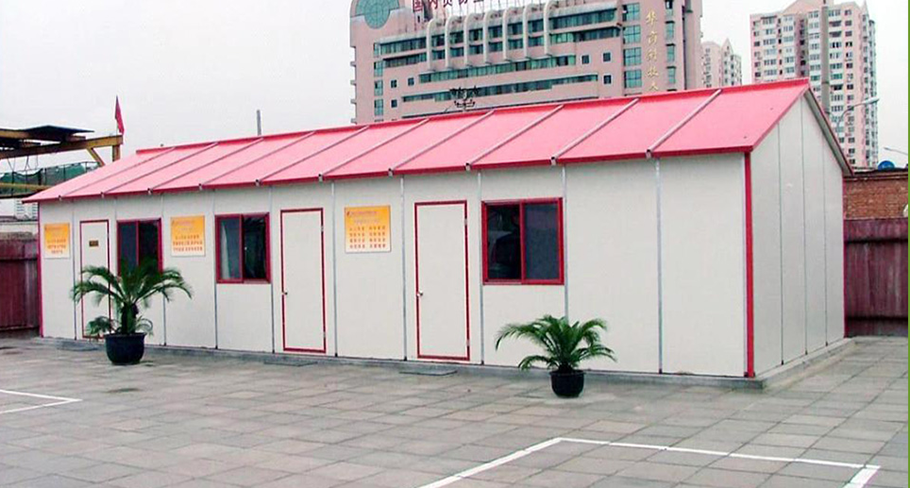

Modern Flat Pack Home Plan Prefab House Designs For Kenya

Modern Flat Pack Home Plan Prefab House Designs For Kenya

  • Place of Origin: Shangdong, China (Mainland)
  • Brand Name: HEYA
  • Model Number: Prefab house
  • Material: Pvc, eps
  • Use: House, Home, Residentail
  • Standard: ISO/CE/AS/US/CA
  • Roofing: Customized
  • Insulation: Fiberglass/ Rock wool / PU
  • Features: Energy saving / Fast Assembly
  • Using Life: 70 Years
  • Design: Plan & 3D Model & Structral D


SPECIFICATION:
1 Room Specification
Room number / Row 20 Rm/Floor x 2 Stroies = 40 Rooms
Room Size 2.75 x 2.75m, Area = 7.5sq.m
2 Steel Material Structure
Column 2C-80x40x15x1.8 w/ Anti Rust Paint & Oil Paint Finished
Base Beam C-80x40x15x1.8 w/ Anti Rust Paint & Oil Paint Finished
Floor Beam C-80x40x15x1.8 w/ Anti Rust Paint & Oil Paint Finished
Ring Beam C-80x40x15x1.3 w/ Anti Rust Paint & Oil Paint Finished
2nd. Floor Purlin C-80x40x15x1.3 w/ Galvanized
Walkway Bracket C-80x40x15x1.3 w/ Anti Rust Paint & Oil Paint Finished
Walkway Panel Steel Panel 1.8 MM Anti-skid Steel Panel width=970 mm & Oil Paint Finished
Steel Rod Bracing RB 9 w/oil paint and GIS. Tum Buckle & Oil Paint Fished
3 Wall Partition Specification
Steel Plate Thickness t > 0.25 mm
Insulation Panel Polystyrene Foam t = 75 mm. / Density = 12 kg./ cu. m. Edge with steel belt
4 Floor
Floor 1, 2 Black Plywood 15 mm
5 Roof Sheet Specification
Purlin Roof C-50x10x5x1.3 w/ Galvanized
Roof Type t> 0.25 mm
Polystyrene Foam t = 75 mm. / Density = 12 kg./ cu. m.
Roof Drain Standard
6 Door and Window
Door steel composite door with lock t= 50 mm. Size 830x2000 pad Lock
Window PVC Window Slide w/ clear glass 4 mm.and lock Set. Size1335*920mm
Wind resistance Grade 11(wind speed≤120km/h)
Earthquake resistance Grade 7
Show load capacity of roofing 0.6 kn/m2
Live load capacity of roofing 0.6 kn/m2
External and internal wall heat transmission coefficient 0.35 kcal/m2hc
Wall permitted loading 0.6 kn/m2
