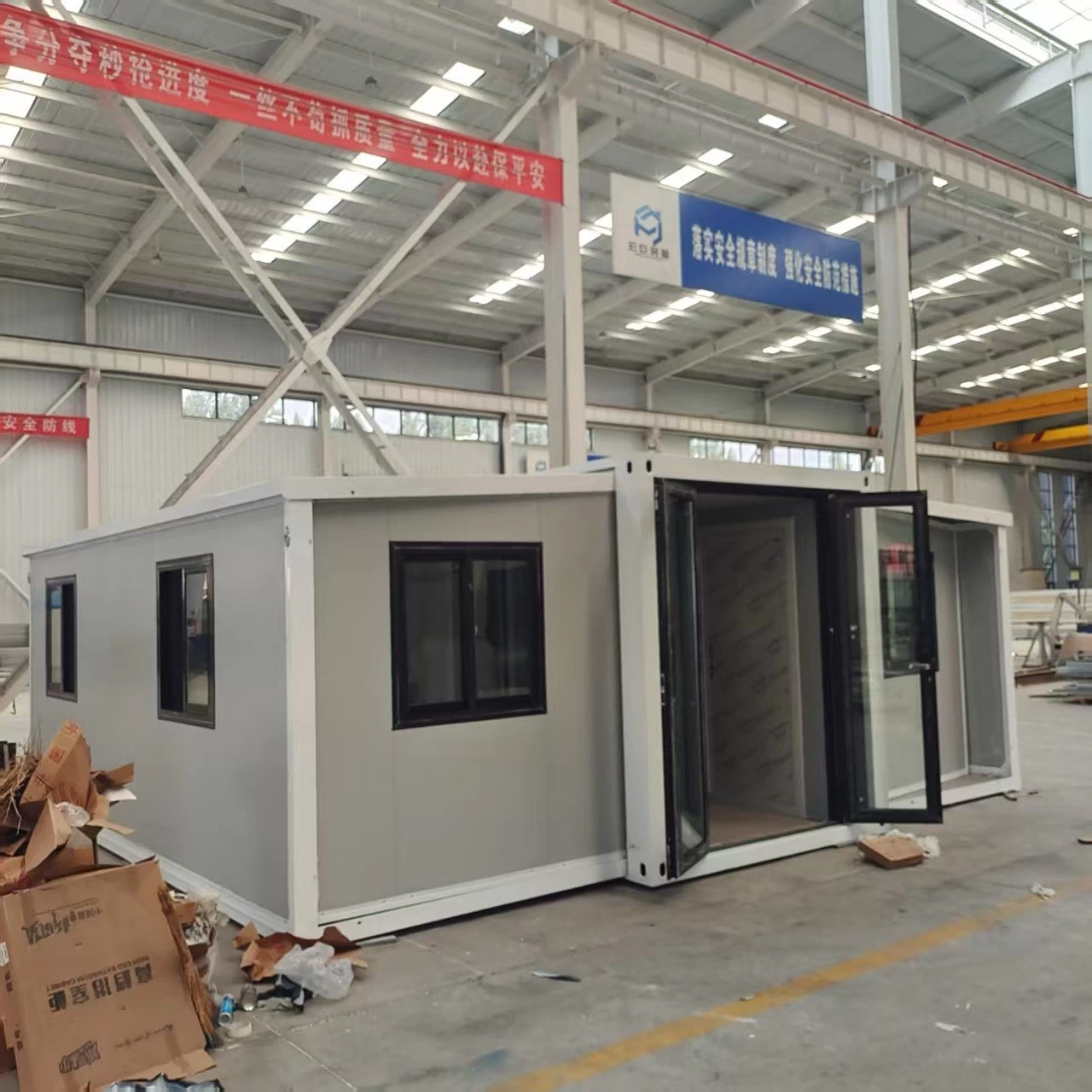

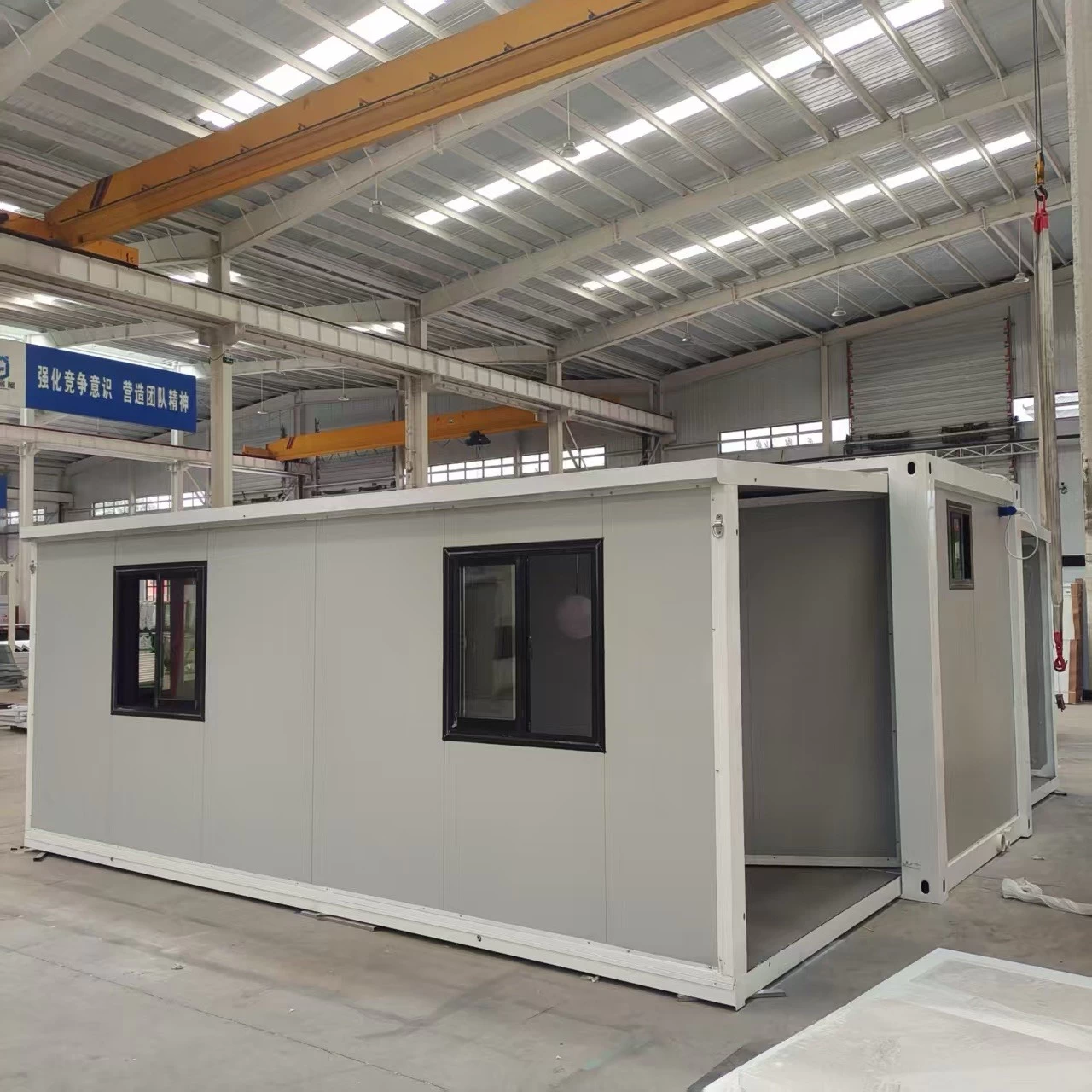

Expandable Container Homes Manufacturer China
- Door entrance door: 1940*2170mm
- toilet aluminum door: 840*1970mm
- room Fireproof lock door: 930*1970mm
- Broken bridge window:
- aluminum sliding window
- aluminum frosted glasses window
- Wall panel: 50mm fire retardant EPS，14kg/m³， 0.4/0.4mm
| EXPANDABLE CONTAINER | ||||

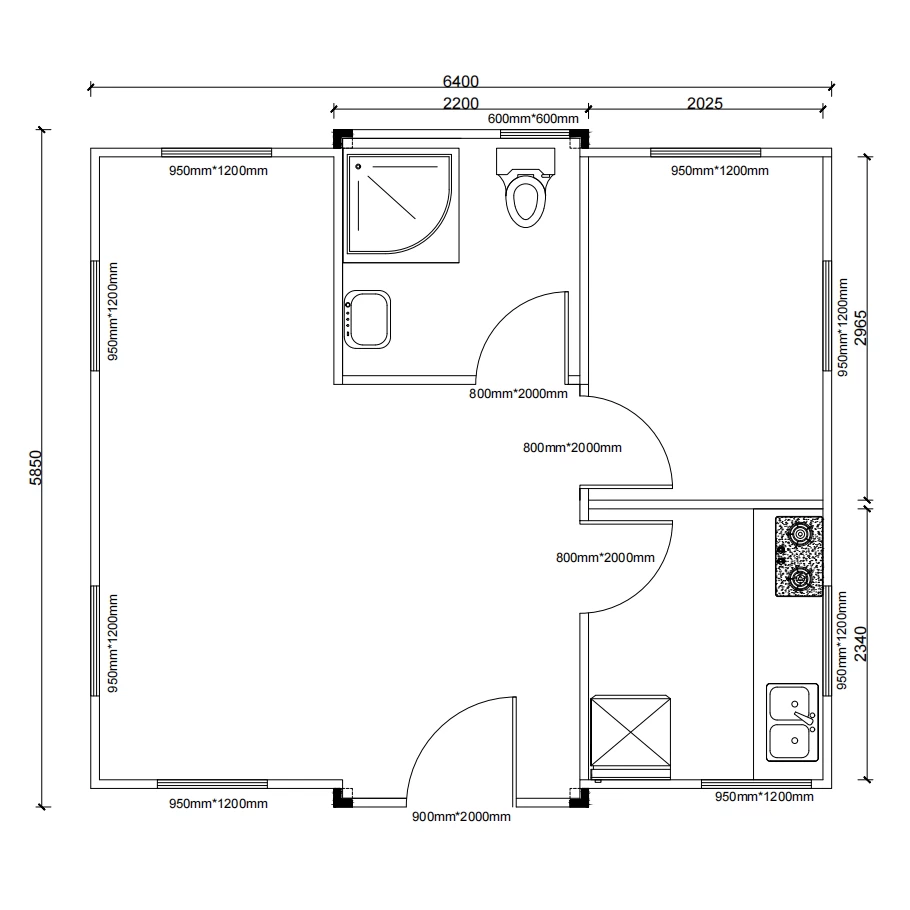

| Expandable Size: 6300*5900*2480mm Foldable Size: 5900*2200*2480mm | ||||
| Item | Description | Unit | Qty | |
| Main Frame |
top frame - middle |
galvanized formed beams, zinc=80g/m³，1900*150mm | pc | 2 |
| galvanized square tube 80*100*2.5mm*6000mm | pc | 2 | ||
| purlin: galvanized square tube 40*60*1.5mm*1900mm | pc | 5 | ||
| purlin: galvanized square tube 20*40*1.0mm*6000mm | pc | 2 | ||
| insulation:75mm glasswool | set | 1 | ||
| 0.5mm galvanized sheet +995 silicone glue | set | 1 | ||
| interior ceiling:ceiling tile + angle iron | set | 1 | ||
| galvanized hanging corner zinc=80g/m³,210*150*160mm | pc | 4 | ||
| top frame - double sides |
galvanized square tube 80*100*1.5mm*6000mm | pc | 4 | |
| galvanized square tube 30*50mm*2000mm | pc | 4 | ||
| thickened angle iron 6000mm | pc | 4 | ||
| bottom frame - middle |
galvanized formed beams,zinc=80g/m³，1900*150mm | pc | 2 | |
| galvanized square tube 80*100*2.5mm*6000mm | pc | 2 | ||
| galvanized square tube 80*100*2.5mm*1900mm | pc | 1 | ||
| galvanized square tube 30*50*1900mm | pc | 1 | ||
| purlin: galvanized square tube 40*60*1.5mm*2000mm | pc | 8 | ||
| purlin: galvanized square tube 40*60*1.5mm*1600mm | pc | 2 | ||
| squatting rack：40*40*6000mm | pc | 2 | ||
| galvanized square tube：20*40*6000mm | pc | 2 | ||
| fiber cement board 1175*1820mm | pc | 5 | ||
| 1.6mm rubber flooring +glue + bonding wire | set | 1 | ||
| bottom frame - double sides |
galvanized square tube 40*60*1.5mm*6000mm | pc | 2 | |
| galvanized square tube 40*60*1.5mm*2200mm | pc | 22 | ||
| galvanized square tube 60*60*1.4mm*6000mm | pc | 2 | ||
| galvanized square tube 40*80*1.4mm*6000mm | pc | 2 | ||
| galvanized square tube 40*40*6000mm | pc | 4 | ||
| galvanized square tube 20*40*6000mm | pc | 6 | ||
| cladding：2200mm | pc | 4 | ||
| thickened angle iron 6000mm | pc | 12 | ||
| bamboo plywood | pc | 9 | ||
| 1.6mm rubber flooring +glue + bonding wire | set | 2 | ||
| frame - front & rear wall |
galvanized square tube 60*80*1.5mm*2220mm | pc | 4 | |
| galvanized square tube 40*60*1.5mm*2220mm | pc | 16 | ||
| thickened angle iron 6000mm | pc | 12 | ||
| middle partition |
galvanized square tube 60*80*1.5mm*2300mm | pc | 1 | |
| galvanized square tube 40*50*1.5mm*2200mm | pc | 2 | ||
| galvanized square tube 40*50*1.5mm*2340mm | pc | 2 | ||
| thickened angle iron 6000mm | pc | 3 | ||
| column |
galvanized column,zinc=80g/m³，2160*210*150mm | pc | 4 | |
| reinforcement ribs | pc | 8 | ||
| galvanized square tube 40*80*1.5mm*2200mm | pc | 4 | ||
| galvanized square tube 40*60*1.5mm*2200mm | pc | 2 | ||
| frame - side wall |
galvanized square tube 40*60*1.5mm*6000mm | pc | 4 | |
| galvanized square tube 40*60*1.5mm*2100mm | pc | 4 | ||
| thickened angle iron 6000mm | pc | 6 | ||
| Door |
entrance | KFC door 1940*2170mm | set | 1 |
| toilet | aluminum door 840*1970mm | set | 1 | |
| room | Fireproof lock door 930*1970mm | set | 2 | |
| Broken bridge window |
aluminum sliding window | pc | 5 | |
| aluminum frosted glasses window | pc | 1 | ||
| Wall panel | EPS | 50mm fire retardant EPS， 14kg/m³， 0.4/0.4mm | set | 1 |
| Electric system | Industrial plug - 1set，D/B - 1pc，2P leakage protector - 1pc，breaker 2P*1pc+1P*1pc， 30W-LED strip light - 2pcs，3 holes socket - 1pc，5 holes socket -3p,switch - 1pc， Three-core sheathed wire：input-6mm²，A/C-4mm²，socket-2.5mm²，light-1.5mm² |
set | 1 | |
| Sanitary ware | toilet*1 set，washing basin*1 set | set | 1 | |
| Pipes | outlet pipe φ110-PVC ，inlet pipe φ25-PPR ，pipe fittings | set | 1 | |
| Accessories | 220mm aluminum plate，50 iron channel，cladding,screw,glue,hinge,sealing | set | 1 | |
Looking for reliable Expandable Container Homes manufacturer in China? We specialize in high-quality, customizable, and cost-effective prefab container houses for residential, commercial & modular projects. Get a quote today!
