expandable container house,shipping container house building,prefabricated container house prices
- Place of Origin: Shangdong, China (Mainland)
- Brand Name: HEYA
- Model Number: prefab container house
- Material: Steel
- Use: Hotel, House, Villa
- Standard: ISO / CE / AS / US / CA
- Roofing: Customized
- Insulation: Fiberglass / Rock wool / PU
- Features: Energy saving / Fast Assembly
- Window: Aluminum Alloy Window, CE / AWA certificated
- Main Material: Light Steel Frames Galv. Z275 / Q345 / AZ150 / G550
- Floor: Laminate / Wooden / PVC / Carpet / tile
Product Description
Floor:
Roof:

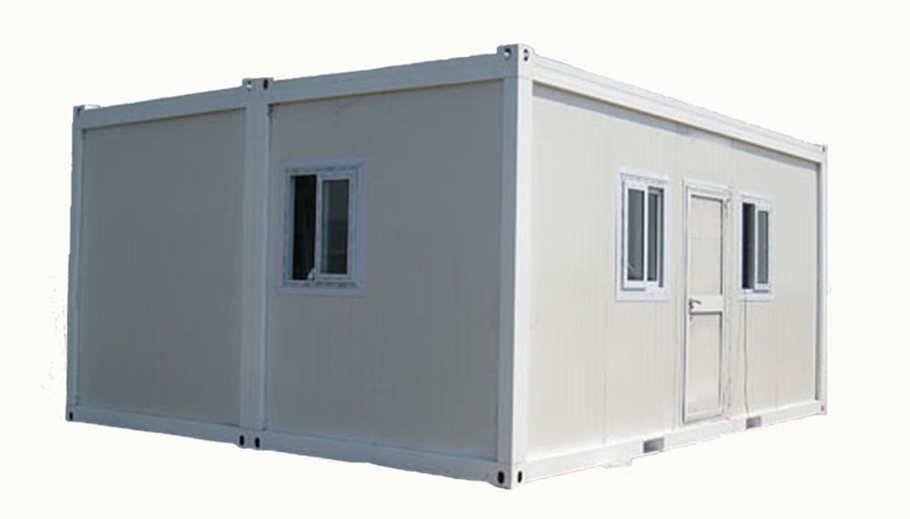

prefabricated expandable shipping container house building prices

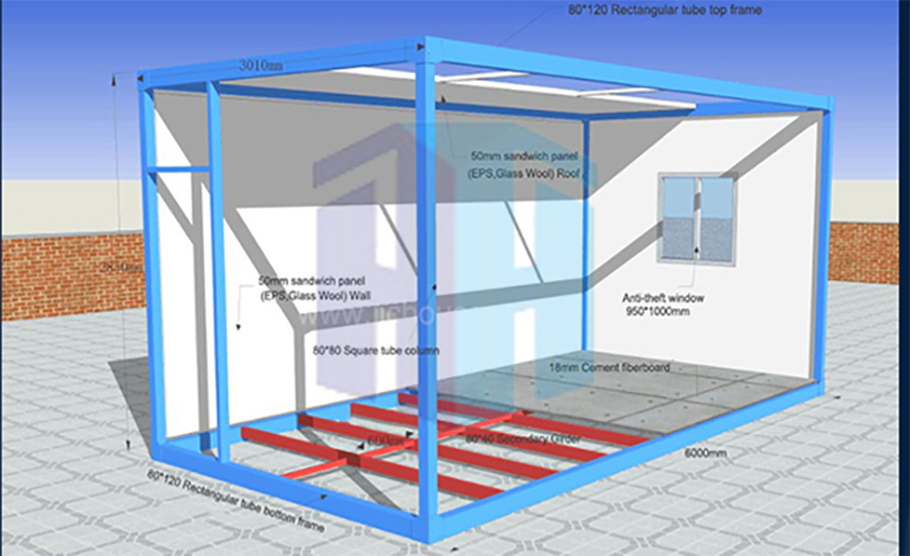

PRODUCT DETAIL & TECHNICAL STANDARD:
| Type | External | Internal | Weight (kg) | |||||
| Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||
| 20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |
| Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
| - 4 corner casts, welded | |
| - 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) |
|
| - steel cross members, thickness=2mm | |
| Insulation | - 100 mm thick Rock Wool |
| Subfloor | - 0.5mm thick, galvanized steel sheet |
| Floor | - 18mm plywood board |
| - 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof:
| Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
| - 4 corner casts, welded | |
| - steel cross members, thickness=2mm | |
| Roof cover | - 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
| Insulation | - 100 mm thick Rock Wool |
| Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
| CEE connector | - sunken in frame on short end side |
Insulation for steel container house:
| Rock wool | - density:120kg/m3 |
| - flammability class A- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL | |
| EPS | - density:10kg/m3 |
| - flammability class B1- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL |
About Us
Shandong Heya Company is the best Chinese prefabricated housing solution supplier.
Our products include prefabricated house,container house, mobile homes, villas, integrated steel structure.
We have 6 years experience in the industry, owning professional manufacture and procurement team, and maintaining long-term cooperative relationship with many well-known manufacturers.
Our products include prefabricated house,container house, mobile homes, villas, integrated steel structure.
We have 6 years experience in the industry, owning professional manufacture and procurement team, and maintaining long-term cooperative relationship with many well-known manufacturers.
Heya Group
Our Client
Packaging&Shipping
| Packaging | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Loading &shipment | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Unloading | 40 feet ocean freight container: A: take out the small packages; B: use folk lift to take out the wall panel packages; C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container D: use folk lift to lift the container package in the middle and move it out of the shipping container; E: put the package on ground sidewise, use wooden pad if it’s flatwise |
Why Choose Us
FAQ
1.Q: How to buy container house?
A: You can provide us your drawing, and we will produce as your drawings.
2.Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
3.Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.
4.Q: How to ship container house?
A: Loading by sea shipping container.
5.Q: How to install after the container house arriving destination?
A: We will provide detailed illustration photos and videos to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be borne by buyers.
6. Q: What are the advantages of your panel?
A: Our panel's outstanding advantages are light weight, heat insulation/proof, waterproof, fireproof, sound insulation, fast construction and so on.
7. Q: Is the panel fire rated, if so, what is the rating?
A: Theoretically,it can endure the fire for 4 hours in the heat of 1000°C. But in fact, it is incombustible.
8. Q: Do you have any certificate to help us get government's approval?
A: We can provide our ISO certificate, test reports, SGS certificates as your support documents. Since the building standards are different in various countries, most of our customers buy the panels for test and get approval by themselves.
9. Q: I need samples for customer approval, will this be possible?
A: We can provide samples at your required size, but we will not afford the cost of delivery, because we always receive requirements for delivery of the panel sample, therefore, we just can offer you the free samples without paying the delivery cost.
A: You can provide us your drawing, and we will produce as your drawings.
2.Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
3.Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.
4.Q: How to ship container house?
A: Loading by sea shipping container.
5.Q: How to install after the container house arriving destination?
A: We will provide detailed illustration photos and videos to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be borne by buyers.
6. Q: What are the advantages of your panel?
A: Our panel's outstanding advantages are light weight, heat insulation/proof, waterproof, fireproof, sound insulation, fast construction and so on.
7. Q: Is the panel fire rated, if so, what is the rating?
A: Theoretically,it can endure the fire for 4 hours in the heat of 1000°C. But in fact, it is incombustible.
8. Q: Do you have any certificate to help us get government's approval?
A: We can provide our ISO certificate, test reports, SGS certificates as your support documents. Since the building standards are different in various countries, most of our customers buy the panels for test and get approval by themselves.
9. Q: I need samples for customer approval, will this be possible?
A: We can provide samples at your required size, but we will not afford the cost of delivery, because we always receive requirements for delivery of the panel sample, therefore, we just can offer you the free samples without paying the delivery cost.
