China low-cost working flat pack container house

Hot Products: Low Price Prefab Villa Prefabricated Steel Structure Villa Made In China-QB01

Low Cost Export Modern Prefab House Designs For Kenya

Cost-Effective Superior Quality Low Cost Container Dorm for Laborers

Place of Origin: Shangdong, China (Mainland)
Brand Name: HEYA
Model Number: Prefabricated building
Material: Galv light steel frames. Z275 / Q345 / AZ150 / G550 Top: laminate / wood / PVC / carpet / tile
Use: Labor dormitory, office, canteen, camp
Standard: ISO/CE/AS/US/CA
Roofing: Customized
Insulation: Fiberglass/ Rock wool / PU
Features: Energy saving / Fast Assembly
Using Life: 70 Years

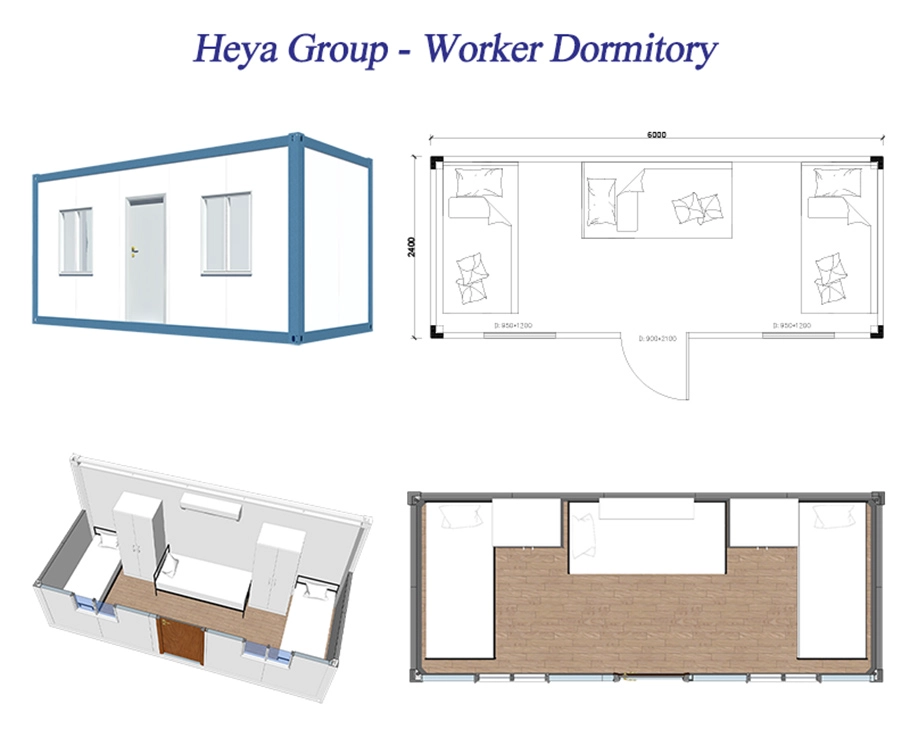

Design: Plan & 3D Model & Structral D

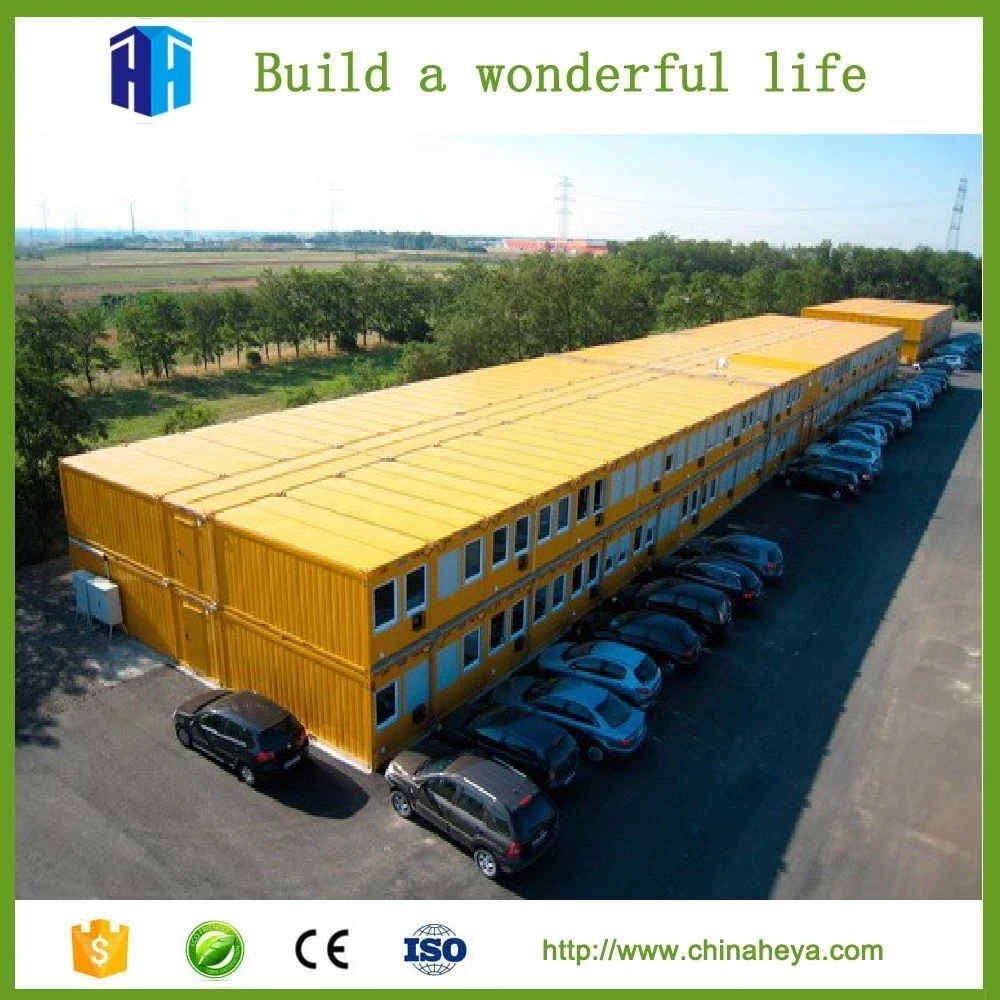

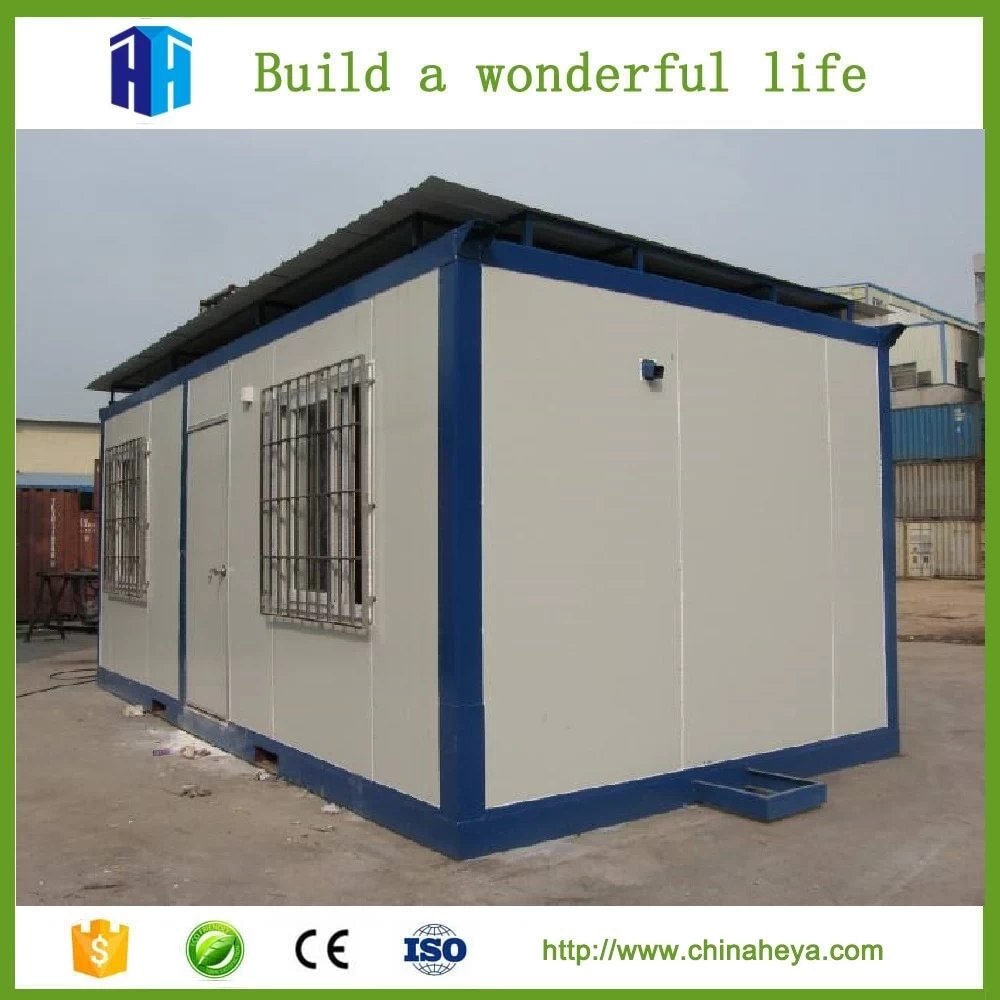

Product Photo

this product in youtube: （click the photo）

Product Detail

NORMAL QUALITY
NO	ITEM	DESCRIPTION
1	bottom frame	beamthickness 2.5mm
		secondary purlin C120601.7mm
		50mm glasswool insulation
		0.23mmcovering tile
2	top frame	beamthickness 2.5mm
		Z molding part
		secondary purlin 80401.3mm
		50mm glasswool insulation+PE film
		0.5mm steel sheet
3	column	2526210150*2.5mm
4	floor board	18mm fiber cement board
5	floor covering	1.6mm PVC vinyle flooring
6	steel door	T75 0.6mm,size 845*2035
7	PVC window	pvc sliding window 1130*1100 double glasses,flying screen
8	wall panel	V1150,75mm glasswool sandwich panel0.4/0.450KG/m³
9	Accessories	φ50mmPVC pipes
		831*0.4mm ceiling
		75 channel
		PVC skirting
		0.4mmcolumn cladding
		rivet,screw,glue,etc.
10	Electric	Industry plug,distribution box,4 socket,1switch,2 light
11	Lifetime	10 years

Technical Parameters

Technical Parameters
Overall weight	50~60kg/sqm
Seismic fortification intensity	8 grade
Wind-proof capacity	wind speed 20m/s, resist 8 grade wind
Floor loading capacity	150kg/sqm
Roof loading capacity	60kg/sqm
External wall bearing capacity	50kg/sqm
