Luxury Popular Modular Steel Villa China Living Residence For Living -Qb27
- Place of Origin: Shangdong, China (Mainland)
- Brand Name: QUALITY
- Model Number: Prefab villa house
- Material: Steel
- Use: House, Villa, Residentail
- Standard: ISO/CE/AS/US/CA
- Roofing: Customized
- Insulation: Fiberglass/ Rock wool / PU
- Features: Energy saving / Fast Assembly
- Using Life: 70 Years

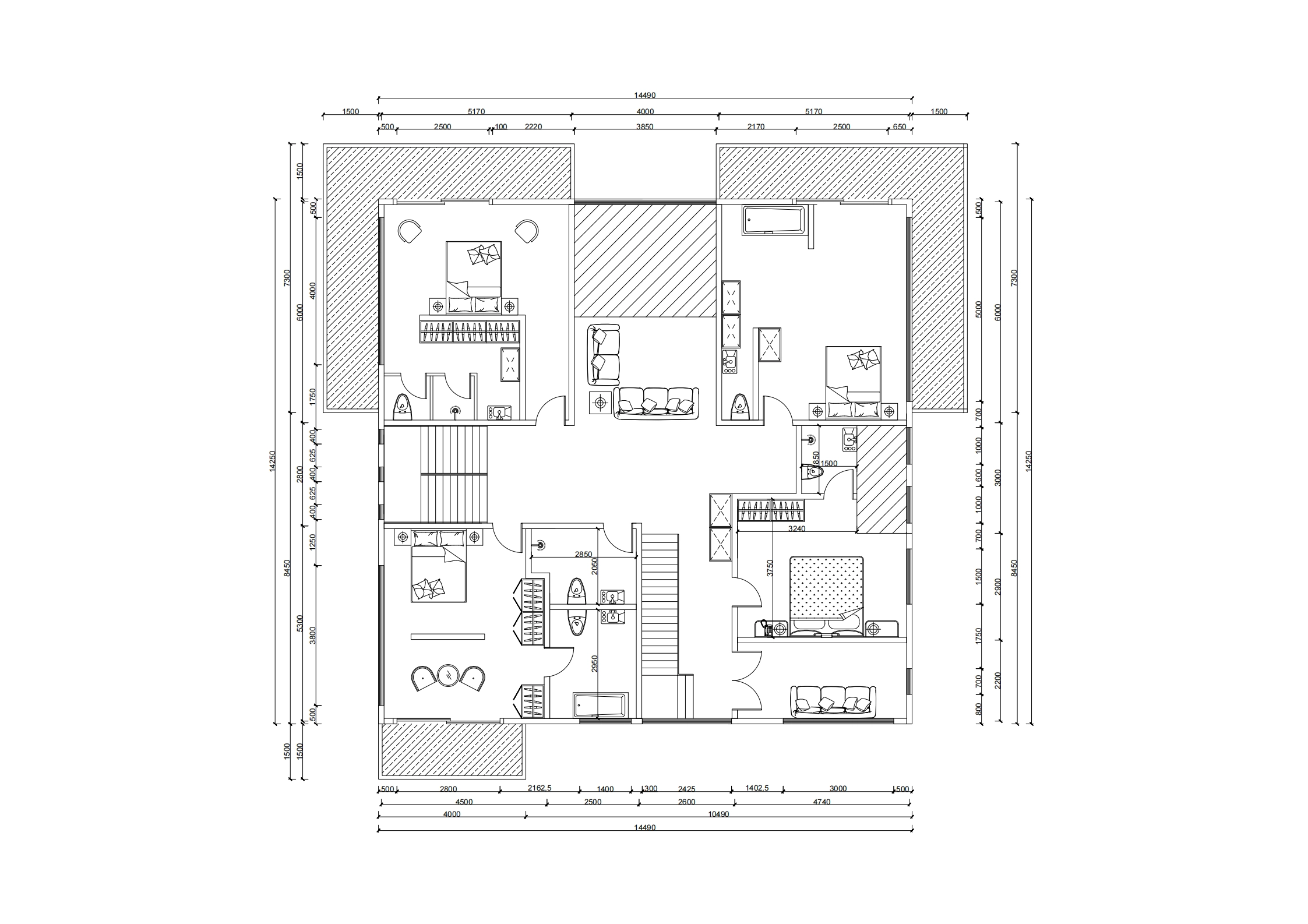

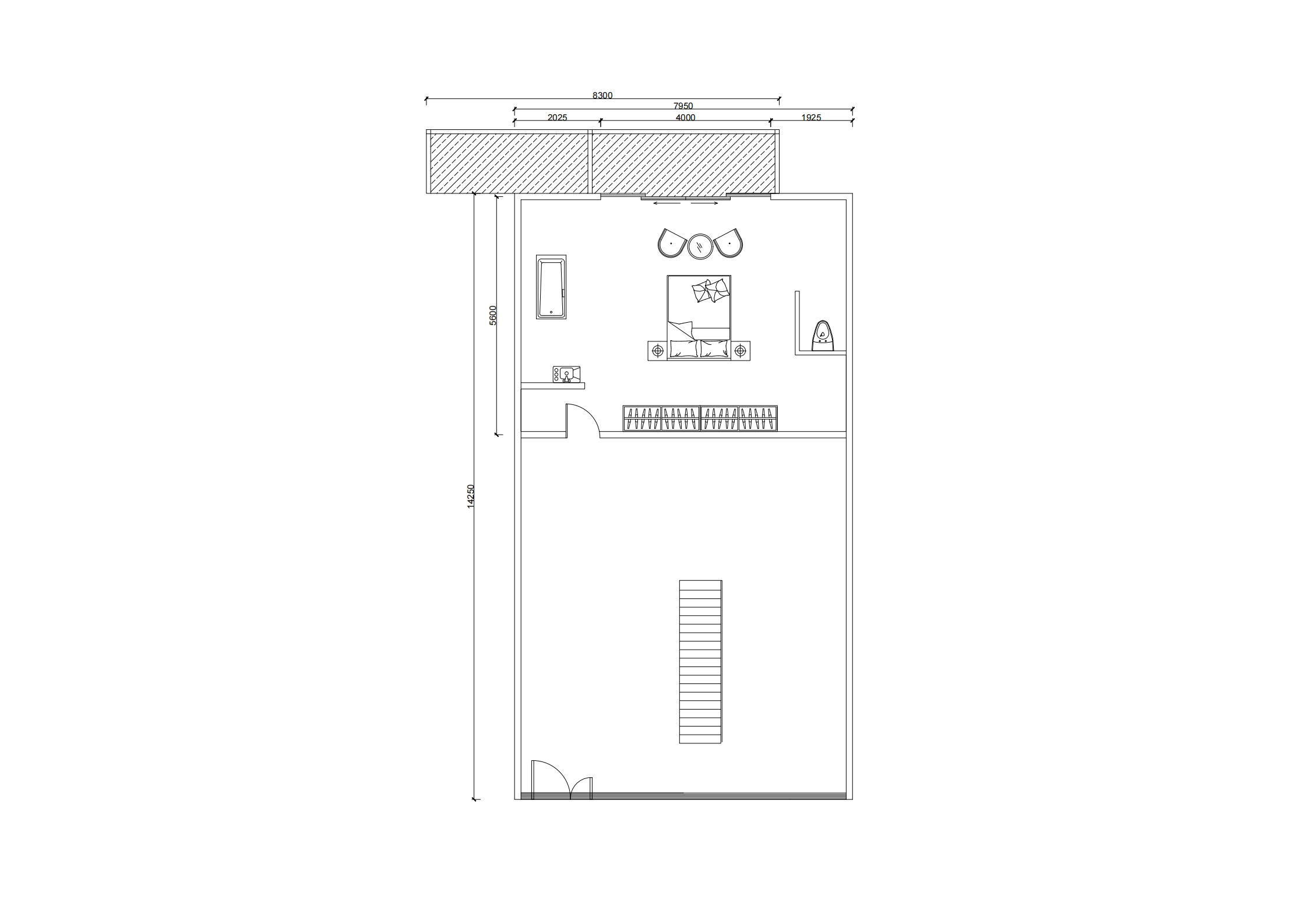

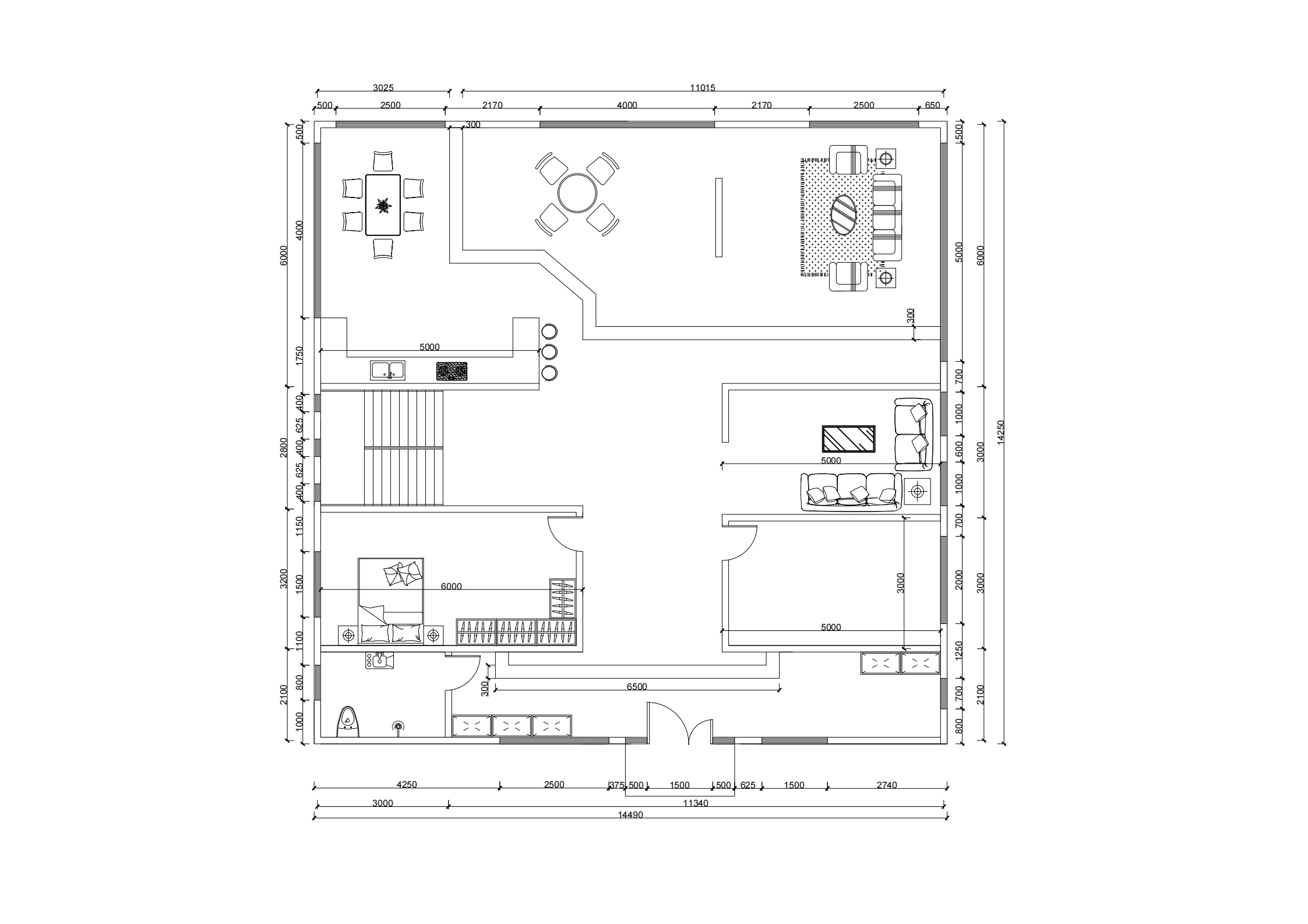

- Design: Plan & 3D Model & Structral D
Luxury Popular Modular Steel Villa China Living Residence For Living -Quality Integrated House
Luxury Popular Modular Steel Villa China Living Residence For Living -Qb27
| No. | NAME | DESCRIPTION | UNIT | THEORY QTY | LOSS RATE | UNIT | ACTUAL QTY |
| 一 | LGS Structure/轻钢结构 | ||||||
| 1 | steel structure | ㎡ | 527 | 1.00 | T | 21.08 | |
| 2 | fittings | set | 527 | 1.00 | ㎡ | 527.00 | |
| 二 | Wall System/墙体系统 | ||||||
| 1 | External wall OSB board/外墙OSB板 | 1220*2440*9mm | ㎡ | 468 | 1.30 | pc | 211 |
| 2 | External wall unidirectional breath paper/外墙单向呼吸纸 | ㎡ | 995 | 1.30 | m2 | 1294 | |
| 3 | External wall wooden support/外墙木方 | 30*40*3000mm | m | 1404 | 1.30 | pc | 608 |
| 4 | External wall metal carved board/外墙金属雕花板 | 381*3800*16mm +381*4500*16mm | ㎡ | 468 | 1.30 | ㎡ | 608 |
| 5 | Internal wall OSB board/内墙OSB板 | 1220*2440*9mm | ㎡ | 865.6 | 1.30 | pc | 391 |
| 6 | Internal wall PVC board/内墙石塑板 | 1200*2400*9mm | ㎡ | 865.6 | 1.20 | m2 | 1039 |
| 7 | Wet district fiber cement board/厨卫内墙水泥纤维板 | 1220*2440*10mm | ㎡ | 254.23 | 1.30 | pc | 115 |
| 三 | Insulation System/保温隔音系统 | ||||||
| 1 | Glasswool Insulation /墙体玻璃保温棉 | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 793.915 | 1.30 | m2 | 1032 |
| 2 | Glasswool insulation(under roof)/吊顶玻璃棉(屋面底部) | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 308.75 | 1.30 | m2 | 401 |
| 3 | External wall XPS board/外墙挤塑板 | 1200*600*40mm | ㎡ | 468 | 1.20 | pc | 780 |
| 四 | Floor System/楼地面系统 | ||||||
| 1 | Floor surface OSB/楼面OSB板 | 1220*2440*18mm | ㎡ | 413 | 1.30 | m2 | 537 |
| 2 | Floor self-paste waterproof coil/楼面自粘防水卷材 | T1.5mm，-15℃，20㎡/roll | ㎡ | 413 | 1.20 | roll | 25 |
| 3 | Floor tile/石塑地板 | 12mm | ㎡ | 413 | 1.10 | ㎡ | 454 |
| 五 | Roof System/屋面系统 | ||||||
| 1 | Roof OSB board/OSB板 | 1220*2440*12mm | ㎡ | 308.75 | 1.50 | pc | 161 |
| 2 | self-paste waterproof coil/自粘性防水卷材 | T1.5mm，-15℃，20㎡/roll | ㎡ | 308.75 | 1.40 | roll | 22 |
| 3 | Roof tile/屋面瓦 | asphalt tile | ㎡ | 308.75 | 1.50 | pack | 165 |
| 4 | Roof ridge tile/屋脊瓦 | asphalt tile | m | 32.5 | 1.10 | pack | 4 |
| 5 | Roof eaves pvc molding /PVC檐口件 | 6m/pc | m | 70.5 | 1.50 | pc | 18 |
| 6 | PVC closing strip/PVC收口条 | 4m/pc | m | 70.5 | 1.50 | pc | 26 |
| 7 | Metal carved board under roof eaves/檐底金属雕花板 | 381*3800*16mm | ㎡ | 42.3 | 1.50 | pc | 44 |
| 六 | Ceiling/吊顶系统 | ||||||
| 1 | pvc ceiling/pvc 吊顶板 | 6000*200mm | ㎡ | 527 | 1.20 | ㎡ | 527.00 |
| 2 | pvc angle skirting/pvc包角 | ㎡ | 527 | 1.05 | ㎡ | 553.35 | |
| 七 | Door & Window/室外门窗系统 | ||||||
| 1 | Alumunium double glaze window/断桥铝窗 | ㎡ | 194.86 | 1.00 | ㎡ | 194.86 | |
| 2 | Steel and MDF door/室外防盗门，室内复合门 | ㎡ | 19.92 | 1.00 | ㎡ | 19.92 | |
| 八 | Water&Electric System/水电系统 | ||||||
| 1 | Water Pipes/给排水 | ㎡ | 527 | 1.00 | ㎡ | 527.00 | |
| 2 | Electric system/电配 | Include weak current,exclude socket/switch/light,etc | ㎡ | 527 | 1.00 | ㎡ | 527.00 |
| 九 | Accessories System/配件 | ㎡ | 527 | 1.00 | ㎡ | 527.00 | |
| 十 | Loading /装货 | ㎡ | 527 | 1.00 | ㎡ | 527.00 |
