Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24

Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design -Qb24

  • Model: QB24
  • Floor: 2
  • Width↑:10.92m
  • Length→:13.98m
  • Floor Area:152.7㎡
  • Building Area: 285.8㎡
  • Rooms Qty:9
Luxury Standard Light Steel Villa Quick Assembly Steel Structure House Design - Quality Integrated House

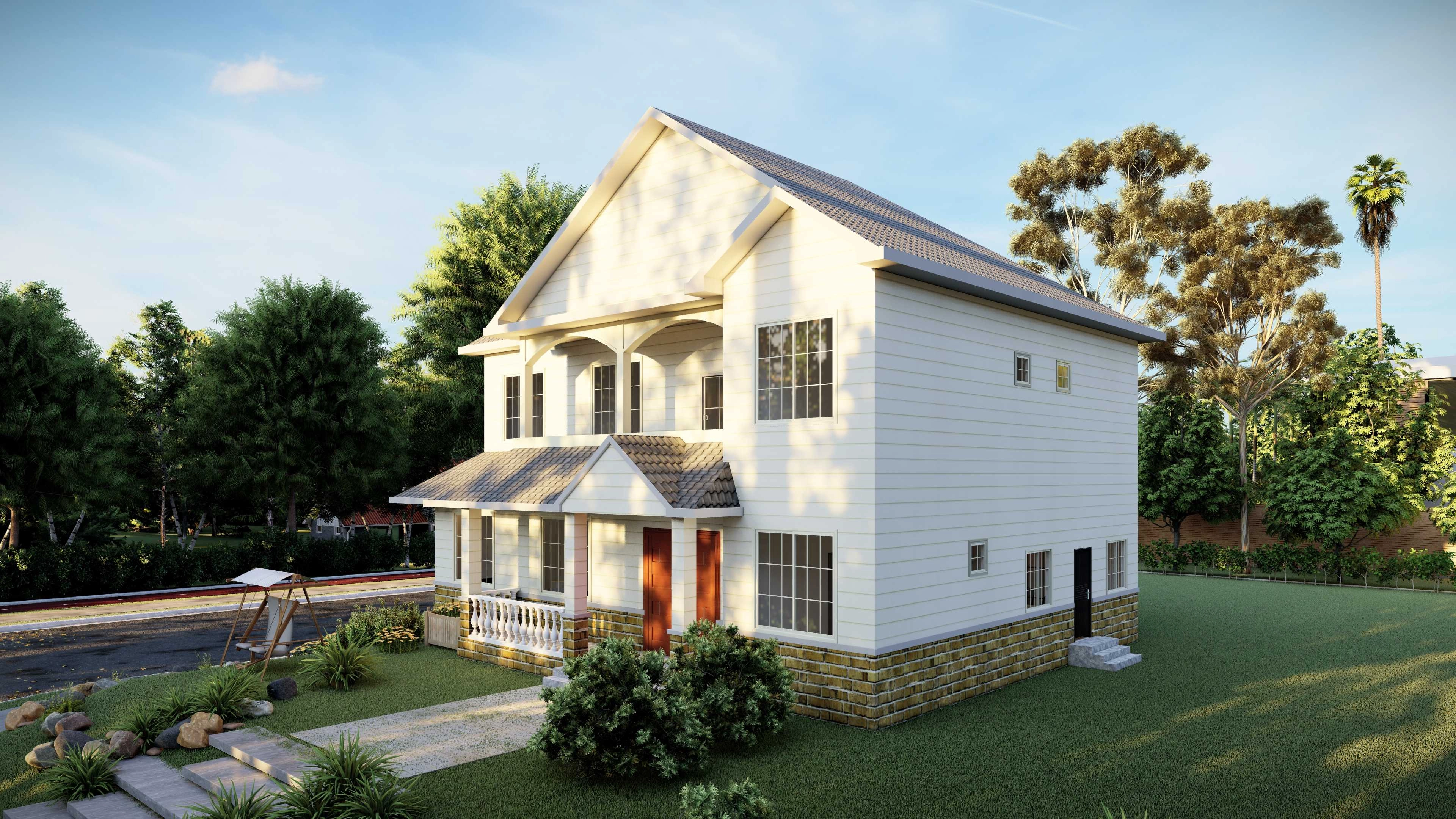

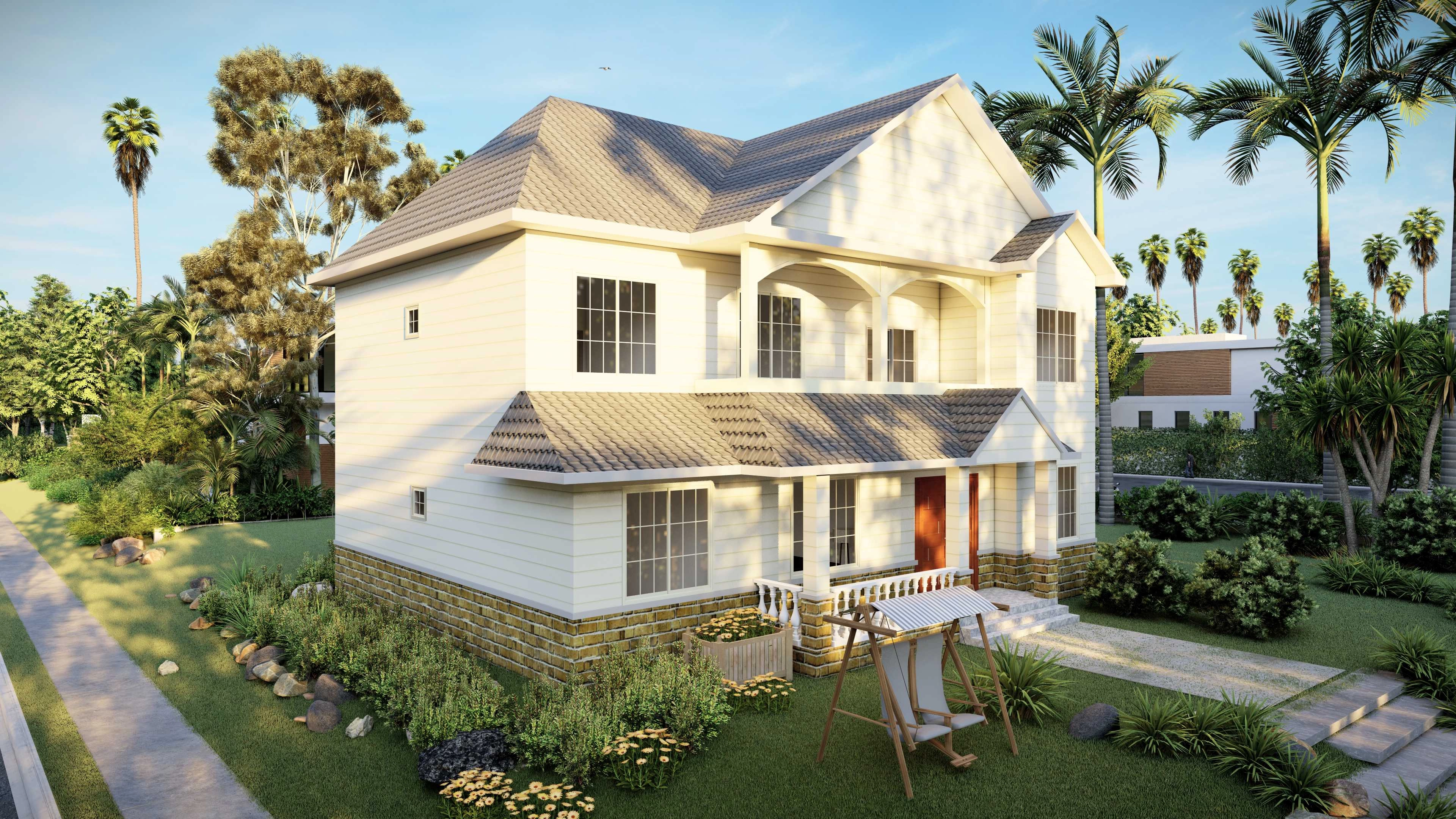

Product Photo



.
No. NAME DESCRIPTION UNIT THEORY QTY LOSS RATE UNIT ACTUAL QTY
LGS Structure/轻钢结构
1 steel structure 310 1.00  T 12.40
2 fittings set 310 1.00  310.00
Wall System/墙体系统
1 External wall OSB board/外墙OSB 1220*2440*9mm 391.7 1.30  pc 177
2 External wall unidirectional breath paper/外墙单向呼吸纸 701.7 1.30  m2 912
3 External wall wooden support/外墙木方 30*40*3000mm m 1175.1 1.30  pc 509
4 External wall metal carved board/外墙金属雕花板 381*3800*16mm +381*4500*16mm 391.7 1.30  509
5 Internal wall OSB board/内墙OSB 1220*2440*9mm 654.06 1.30  pc 295
6 Internal wall PVC board/内墙石塑板 1200*2400*9mm 654.06 1.20  m2 785
7 Wet district fiber cement board/厨卫内墙水泥纤维板 1220*2440*10mm 228.3 1.30  pc 103
Insulation System/保温隔音系统
1 Glasswool Insulation /墙体玻璃保温棉 T75mm12/roll    16Kg/m3 637.03 1.30  m2 828
2 Glasswool insulation(under roof)/吊顶玻璃棉(屋面底部) T75mm12/roll    16Kg/m3 251 1.30  m2 326
3 External wall XPS board/外墙挤塑板 1200*600*40mm 391.7 1.20  pc 653
Floor System/楼地面系统
1 Floor surface OSB/楼面OSB 1220*2440*18mm 143.2 1.30  m2 186
2 Floor self-paste waterproof coil/楼面自粘防水卷材 T1.5mm-15℃,20/roll 143.2 1.20  roll 9
3 Floor tile/石塑地板 12mm 310 1.10  341
Roof System/屋面系统
1 Roof OSB board/OSB 1220*2440*12mm 251 1.50  pc 131
2 self-paste waterproof coil/自粘性防水卷材 T1.5mm-15℃,20/roll 251 1.40  roll 18
3 Roof tile/屋面瓦 asphalt tile 251 1.50  pack 134
4 Roof ridge tile/屋脊瓦 asphalt tile m 72.89 1.10  pack 10
5 Roof eaves pvc molding /PVC檐口件 6m/pc m 86.03 1.50  pc 22
6 PVC closing strip/PVC收口条 4m/pc m 86.03 1.50  pc 32
7 Metal carved board under roof eaves/檐底金属雕花板 381*3800*16mm 51.618 1.50  pc 54
Ceiling/吊顶系统
1 pvc ceiling/pvc 吊顶板 6000*200mm 310 1.20  310.00
2 pvc angle skirting/pvc包角 310 1.05  325.50
Door & Window/室外门窗系统
1 Alumunium double glaze window/断桥铝窗 57.58 1.00  57.58
2 Steel and MDF door/室外防盗门,室内复合门 22.4 1.00  22.40
Water&Electric System/水电系统
1 Water Pipes/给排水 310 1.00  310.00
2 Electric system/电配 Include weak current,exclude socket/switch/light,etc 310 1.00  310.00
Accessories System/配件 310 1.00  310.00
Loading /装货 310 1.00  310.00
