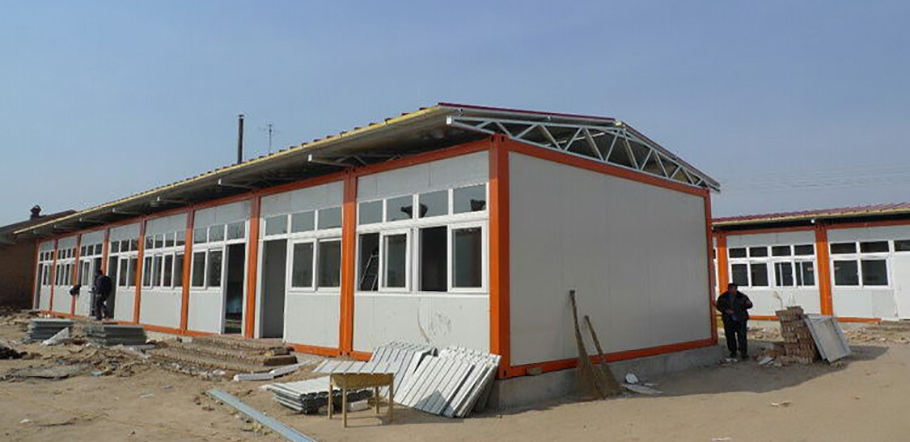

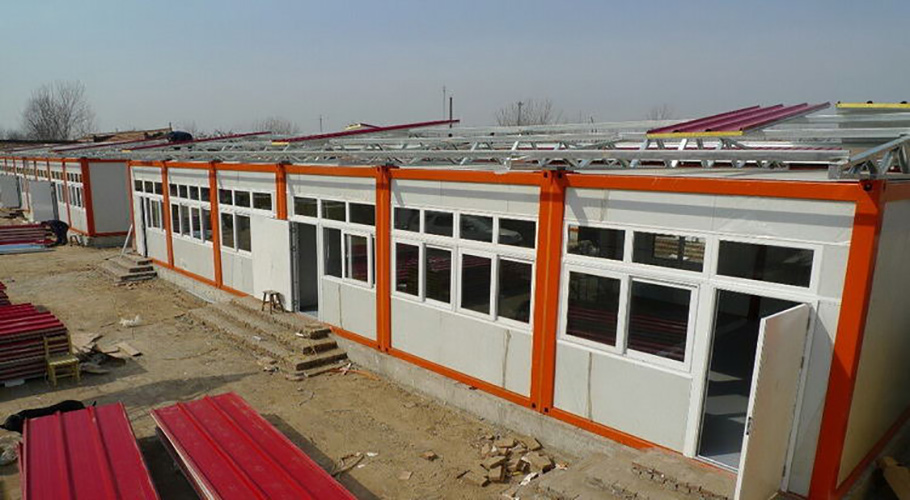

HEYA prefabricated steel structure container building modular school house construction
- Place of Origin: Shangdong, China (Mainland)
- Brand Name: HEYA
- Model Number: Container house
- Material: Container
- Use: Camp, school, dormitory, mining
- Standard: ISO/CE/AS/US/CA
- Roofing: Customized
- Insulation: Fiberglass/ Rock wool / PU
- Features: Energy saving / Fast Assembly
- Using Life: 70 Years
- Design: Plan & 3D Model & Structral D
| Detail | ||
| Floor | Steel frame | made from cold rolled, welded steel profiles, 4 mm thick |
| 4 corner casts, welded | ||
| 2 fork lift pockets (except 30’) - distance 1200mm | ||
| (internal clearance of fork lift pockets: 240×80 mm) | ||
| steel cross members, thickness=2mm | ||
| Insulation | 100 mm thick Rock Wool | |
| Subfloor | 0.5mm thick, galvanized steel sheet | |
| Floor | 8mm plywood board | |
| 1.8mm PVC floor | ||
| flammability class B1 - hardly combustible | ||
| smoke density class Q1 - low smoke emission | ||
| wear resistance factor: T level | ||
| Roof | Steel frame | made from cold rolled, welded steel profiles, 3mm thick |
| 4 corner casts, welded | ||
| steel cross members, thickness=2mm | ||
| Roof cover | 0.5mm thick, galvanized steel sheet 360 degree seaming at joint of roof panels | |
| Insulation | 100 mm thick Rock Wool | |
| Ceiling | 10 mm chipboard (V 20), laminated on both sides, white the chipboard complies with the emission value E1 | |
| CEE connector | sunken in frame on short end side | |
| Insulation | Rockwool | density:120kg/m3 |
| flammability class A- non combustible | ||
| certificated: CE & GL | ||
| EPS | density:10kg/m3 | |
| flammability class B1- non combustible | ||
| smoke density class Q1 - low smoke emission | ||
| certificated: CE & GL | ||
